JTM805 Thermal Infrared Screening System


Download Userguide

Youtube Video

Shopping link in aliexpress

Contact Email: davidyip@jingyan.tech


Thermal Infrared Camera JTM805 fast fever screening system, low cost high performance, with 8 inch large screen, face recognition funciton to catch forhead temperature, measuring range up to 1.5m. Can catch 5 person forehead temperature in the same time, response time less than 0.15s


Jingyan’s JTM05 multi-person face recognition thermal imaging measurement module integrates high-precision thermal imaging temperature sensor, built-in intelligent face capture algorithm, with powerful functions such as face detection and temperature detection. With the thermal imaging screening system software, it can accurately capture the forehead temperature of the personnel through the camera vision. It can effectively help users to monitor the temperature status of the entry and exit personnel, and help prevent the epidemic situation. It is widely used in school, office building, station and other entrance scenes. Jingyan’s JTM05 temperature measurement module protocol is open with complete documents, which can support the secondary development of Android APK and engineers to develop further application.


Product features:

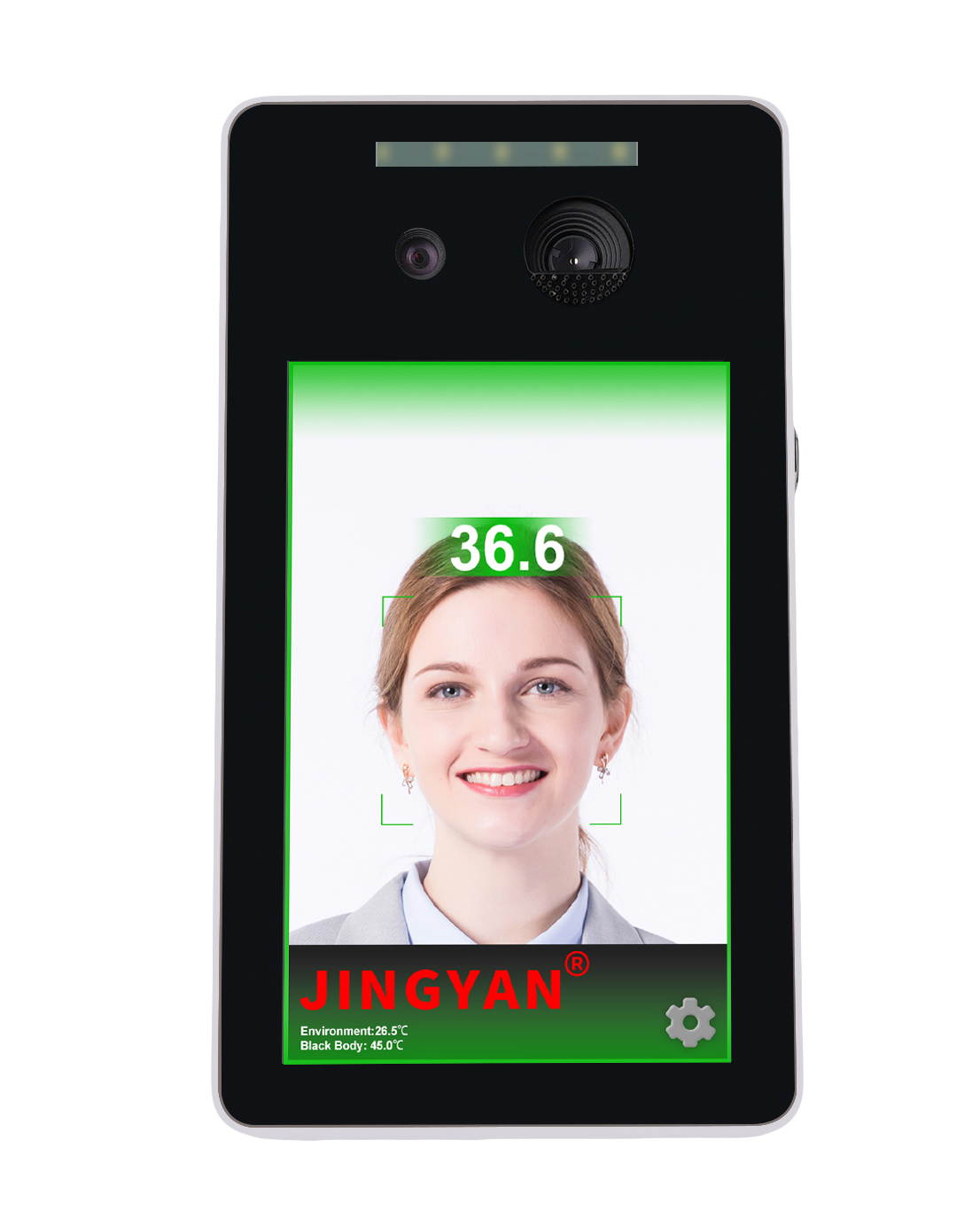

  1. 8 inch large LCD display with high resolution 1280X800.

  2. Speaker can notify user.

  3. Industrial appearance and metal case, with a wide dynamic color camera, stable and reliable quality;
  4. Non-contact temperature measurement, automatic face recognition, forehead temperature capture in 100ms;
  5. 0.3 to 1.5 meters ultra-far temperature detection, 0.1℃ resolution and <0.5 ℃ error

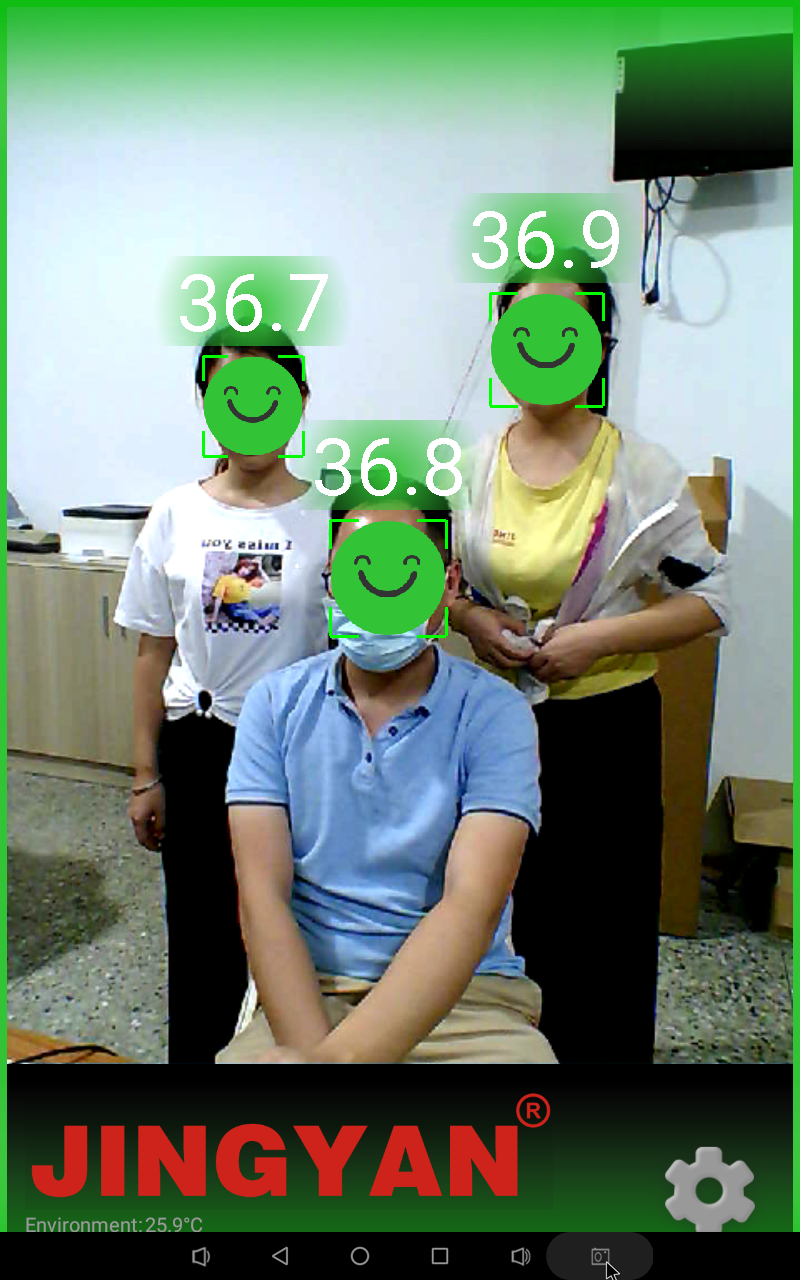

  6. Support up to five people to test at the same time and multiple people to test;
  7. Automatic recognition of face forehead, only capturing the temperature of forehead area, more accurate and reliable;

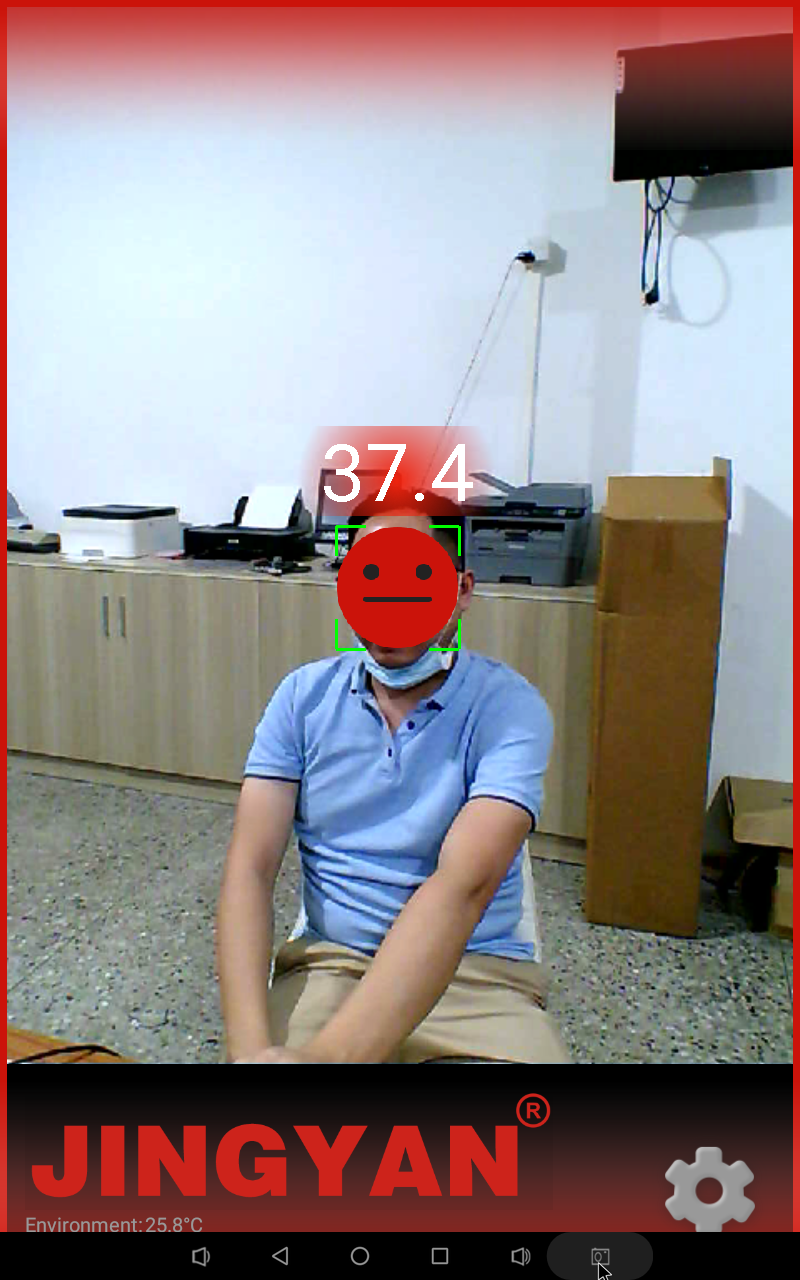

  8. Support accurate face recognition when wearing masks;
  9. White LED with auto environment weak light detection;
  10. Red, Blue and green programmable LED can show different status of under testing person;
  11. Support facial expression shielding, automatically shield face information for private;
  12. Two operation mode, fast screening mode and precision measurement mode;
  13. Thermal imaging 4800 points (80x60 pixels) multi-point temperature detection;
  14. It has its own environment temperature detection, adapts to the high / low temperature environment, automatically corrects and compensates forehead temperature in different environment;
  15. Intelligent optimization algorithm, reduces the influence of the distance between the personnel and the camera;
  16. Complete relevant documents, support the secondary development of Android APK, android APK is open-sourced in GITHUB;


Model No.

JTM805

Color Camera Parameters

Resolution

100W Pixel

Type

Single Len Wide Dynamic Camera

Focus Length

50-150cm

White Balance

Auto

Light

White LED for Lighting, Red, Green and Blue for status LED

Display

Resolution

1280X800

Size

8 inch

Lux

300

Calibration Parameters

Environment Temperature Measurement

-20~100, +/-0.5

Black-Body Temperature Control

30~50, +/-0.1

Thermal Camera Parameters

Infrared Thermal Measurement Range

0~60

IR Thermal View Angle

90°

IR Temperature accuracy

≤ 0.5, (After Calibration: <=0.2)

JTM805 Parameters

Protection Class

Standard indoor or outdoor usage

Speaker

2W 8Ω

Working Temperature

0~50Recommended Temperature

15~40

Storage Temperature

-10~60

Power Supply

DC 12V, 3A

External Connection

2 X USB2.0 port (For Flash U drive or Mouse)

Installation

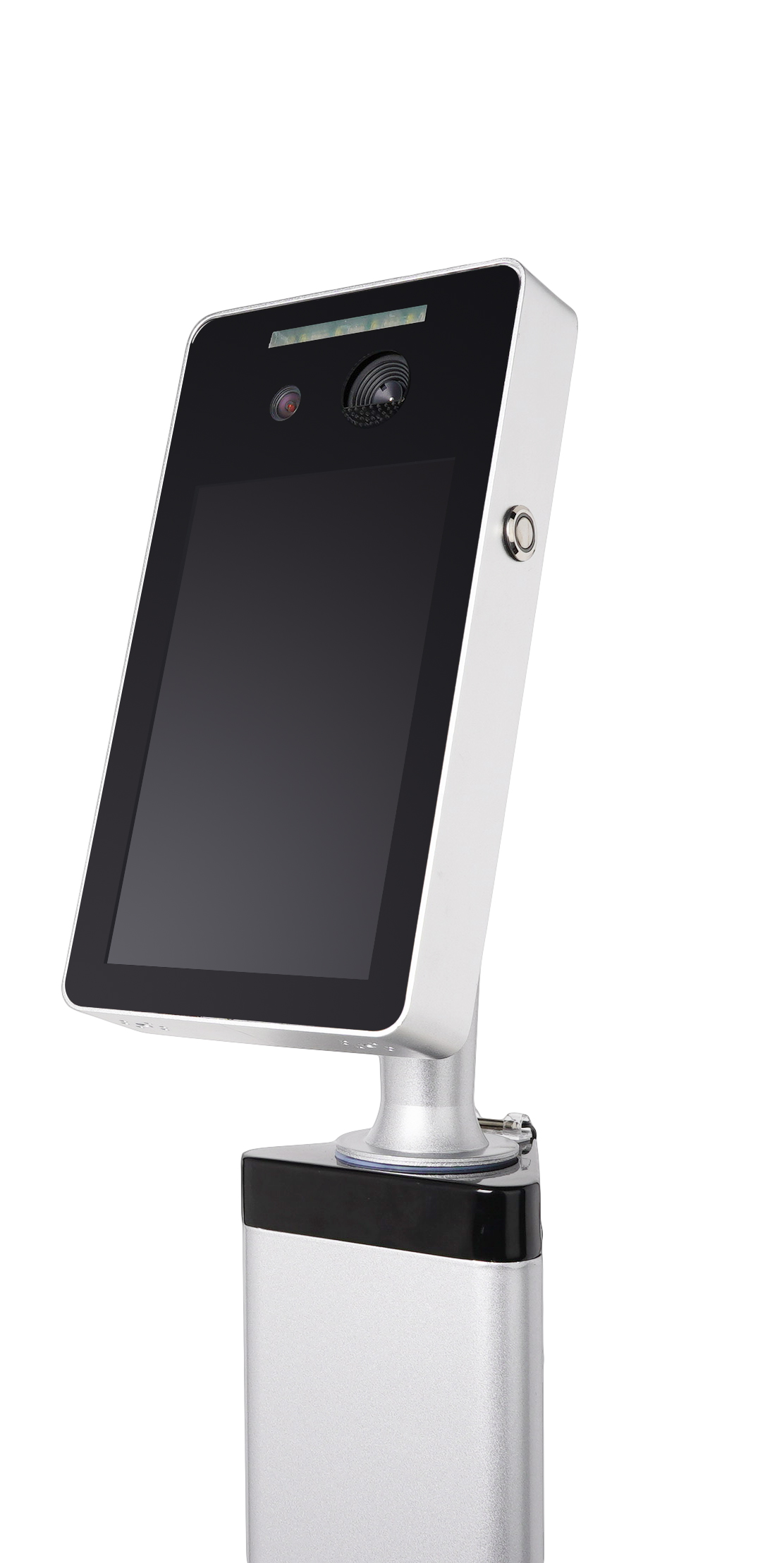

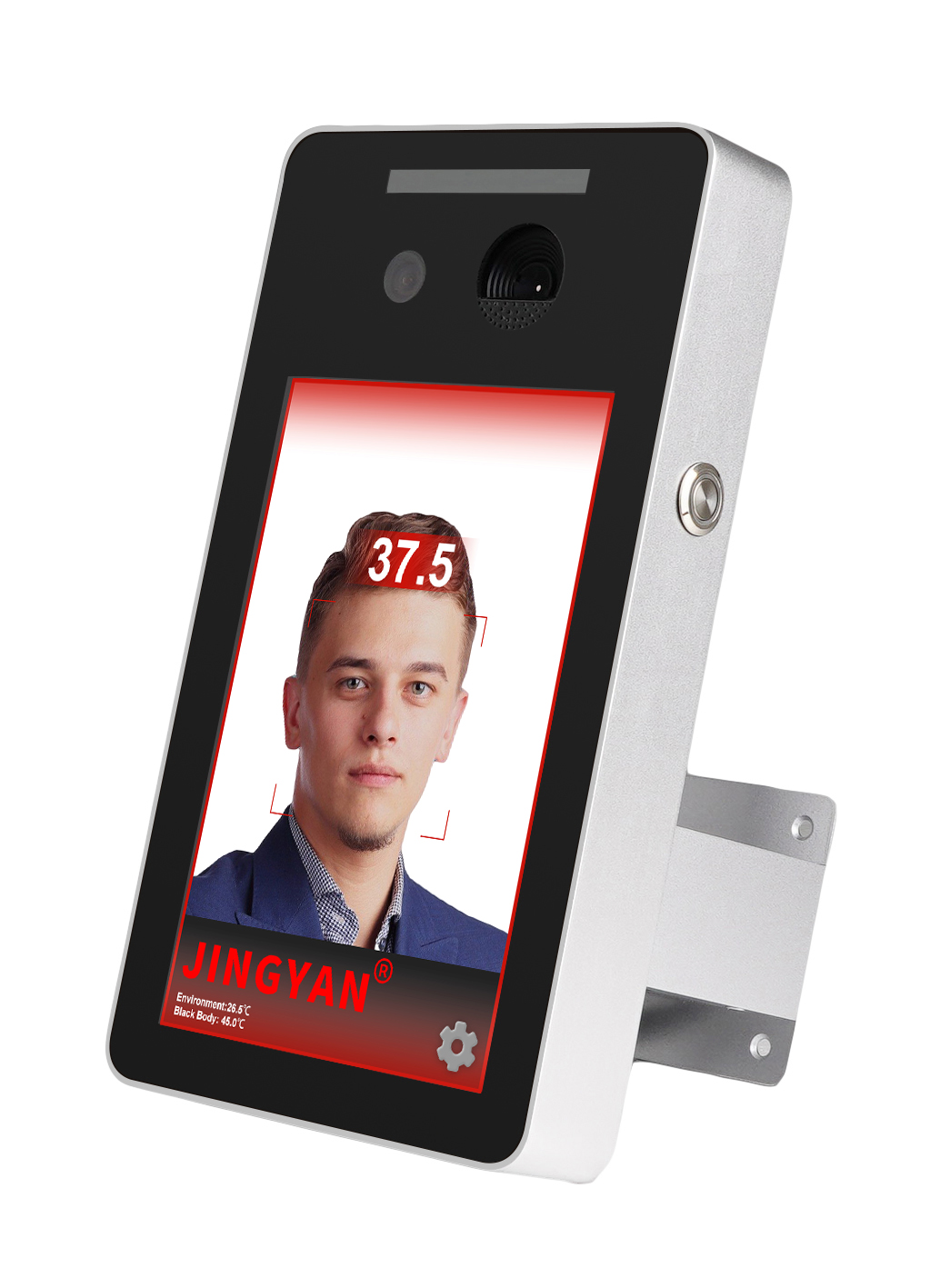

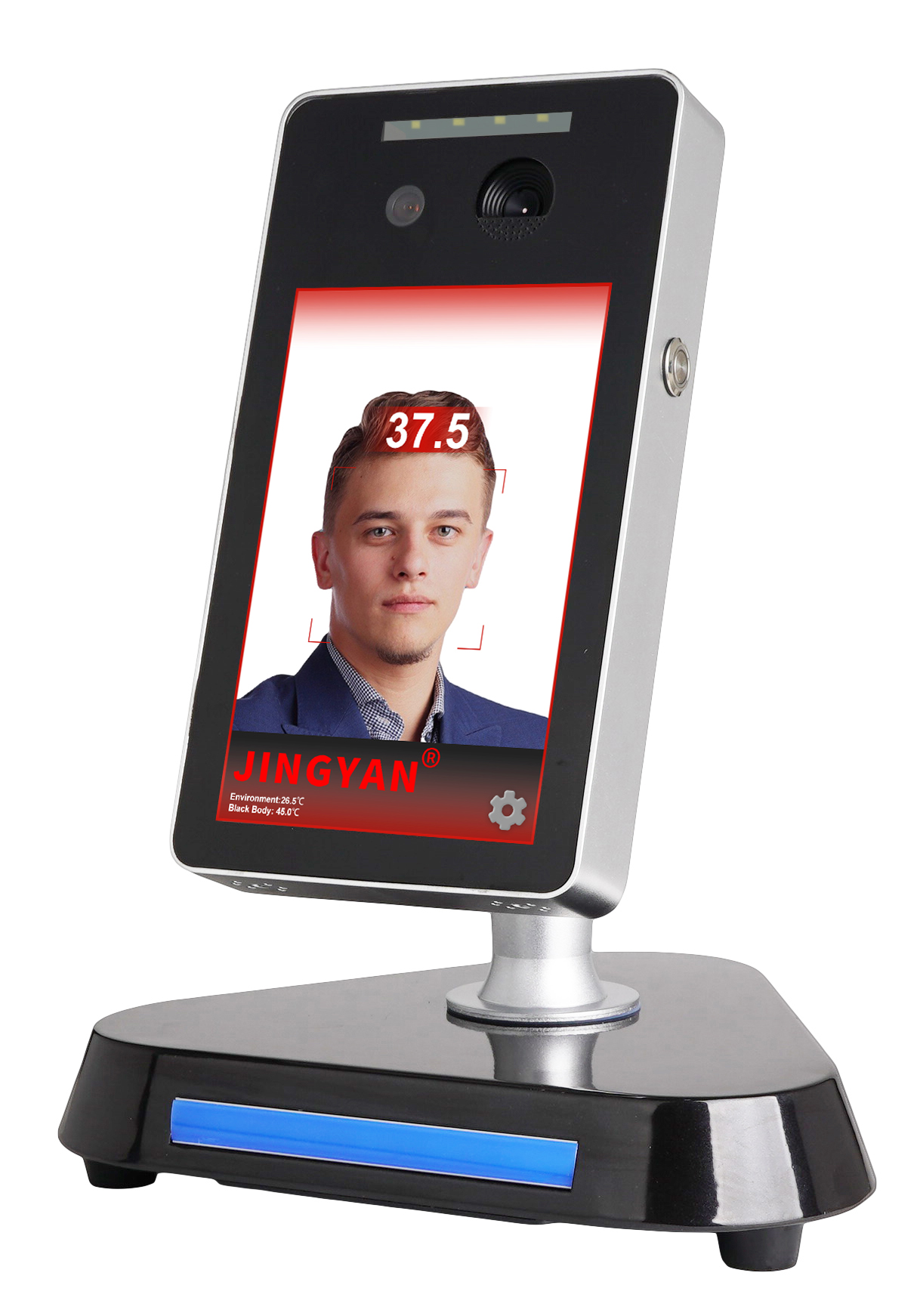

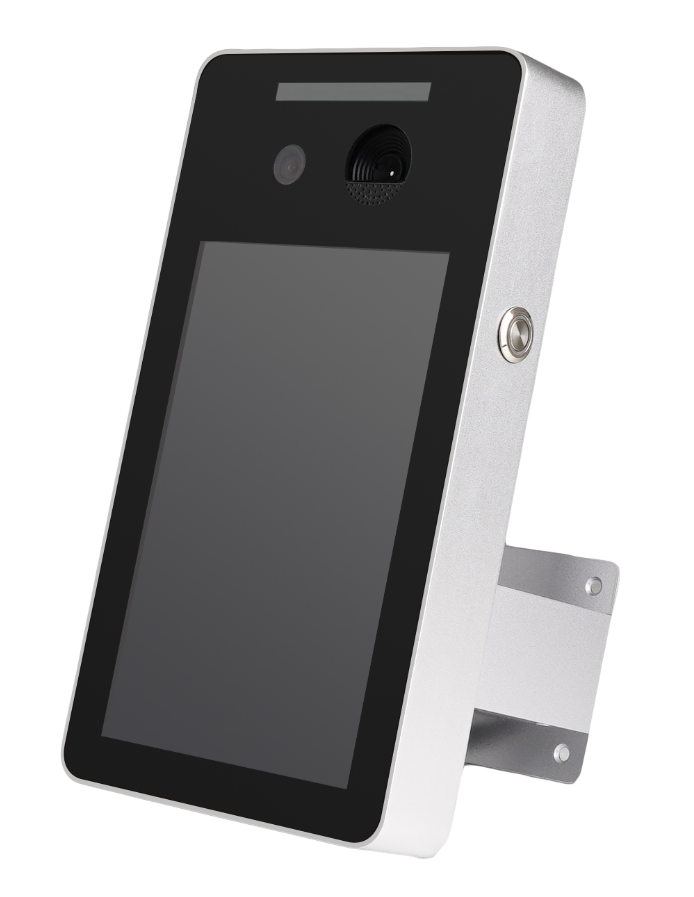

Can adapt to our wall mount, desktop stand and 1.2m floor stand.

Size

258*142*35mm

Weight

910g
